AP310i is a WiFi6 dual-band ceiling-mounted commercial access point. The product is based on the powerful Qualcomm wireless core platform, with 24dBm TX power and 5dBi high-gain built-in antennas. It supports IEEE 802.11a/b/g/n/ac/ax, the maximum WiFi rate reaches almost 3000Mbps. The product comes with a standard configuration of a 512MB RAM(supports customization from 256MB to 1GB). The excellent performance and stability not only come from the high-end Qualcomm core platform, but also rely on the professional hardware and software design by our professional R&D team. The product can be widely used in industries and scenarios such as offices, education and training, smart medical care, apartments, dormitories, exhibition halls and auditoriums.
Wi-Fi Interface | |
Wi-Fi Chipsets | 2.4GHz: Qualcomm IPQ5018 (Dual-core ARM Cortex-A53@1GHz) |
5GHz: Qualcomm QCN6102 | |
Memory | Flash:SPI NAND 128MB + SPI NOR 8MB |
RAM:512MB DDR3L SDRAM | |
Wi-Fi Standards | 2.4 GHz: IEEE802.11b/g/n/ax |
5.8 GHz: IEEE 802.11a/n/ac/ax | |
Frequency | 2.4 GHz(2.412GHz - 2.484GHz) |
5 GHz(5.15GHz～5.85GHz) | |
Antennas | Internal high gain antenna*4 |
Wi-Fi Security | Open, WPA, WPA2PSK TKIPAES,WAP2 EAP.WPA3 |
Operating Modes | Wireless router mode Access point mode Repeater mode |
End Users | 256 |
Wi-Fi Data Rates | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps+4804Mbps |
TX Power | 24dBm |
Ethernet Interface | |

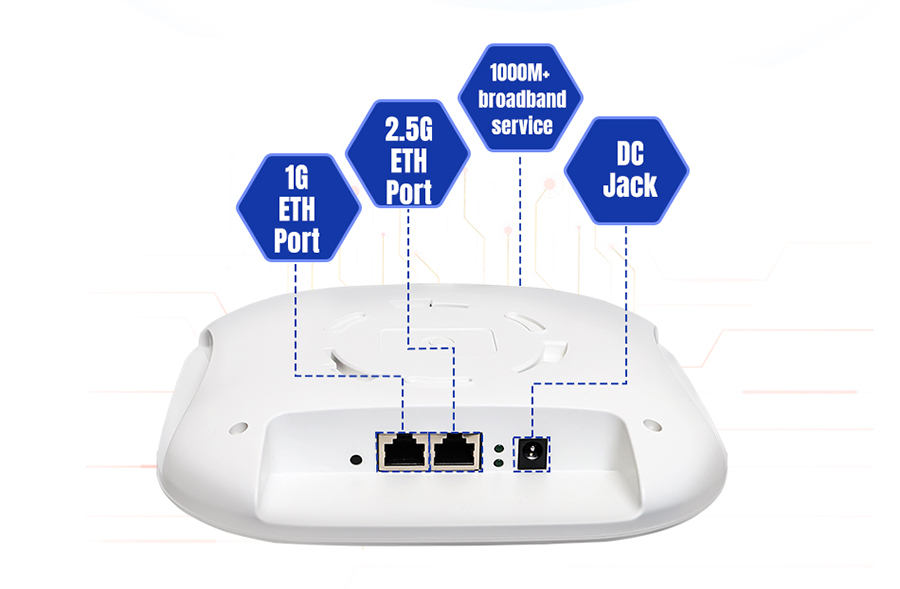

WAN | 1 x 2.5Gigabit WAN RJ45, 10/100/1000 Mbps, auto MDI/MDIX |
LAN | 1 x 1Gigabit LAN RJ45, 10/100/1000 Mbps, auto MDI/MDIX |
Mode | Full or Half Duplex (Auto-Sensing) |
Power Supply | |

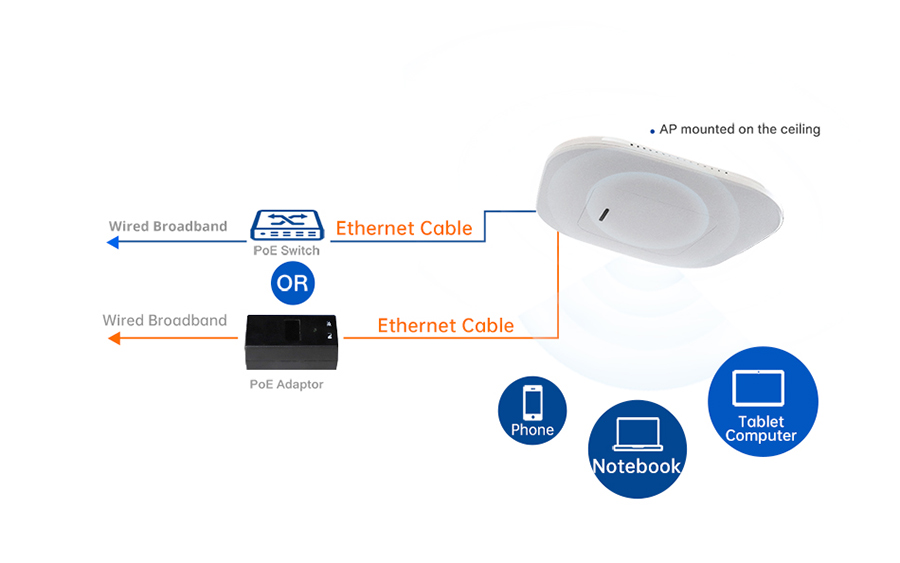

Power Input | 48V PoE input over WAN |
Power Consumption | 15W |
Standard | IEEE 802.3at standard |
Physical Characteristics | |
Housing | Plastic |
Dimension | 190*190*42mm(L*W*H) |
Installation | Ceiling mounting |
Operating Temperature | 0℃~ +40℃ |
Storage Temperature | -40℃～+70℃ |
Ingress Protection | IP30 |
Weight | 500g |
Software | |
VPN Client | IPSec Client |
Others | |
Button | Press and hold 5s to restore factory Settings |
Indicators LED | WAN,LAN, Internet |
